Excellent quality Green Science Home Level 2 EV Charging Station with NEMA 14-50 Plug 32A 40A 48A EV Charger

Short Description:

Business Model for ACE EV Charger BeeY is suitable for both residential and commercial use, with a maximum output of 22kw allowing for fast charging. It is intended to save space and is suitable for outdoor installations such as parking lots of office buildings, hospitals, supermarkets, hotels, and so on for commercial EV charging. EV Charging Station Business Model BeeY supports remote control via App via OCPP 1.6J. It is always connected, allowing you to track and manage your charging stations, as well as receive remote firmware updates and earn revenue.


  • Power:: 22KW
  • Output Current:: 32A
  • Rated Voltage:: 400V
  • Charging connector:: IEC 62196-2 Type 2, SAE J1772 Type 1
  • Start Mode:: Plug&Charge/RFID Card/APP
  • Product Detail

    Dedicated to strict excellent control and considerate shopper company, our experienced staff members associates are often available to discuss your demands and make certain full buyer pleasure for Excellent quality Green Science Home Level 2 EV Charging Station with NEMA 14-50 Plug 32A 40A 48A EV Charger, Welcoming interested companies to cooperate with us, we look forward to having the opportunity of working with companies around the world for joint growth and mutual success.
    Dedicated to strict excellent control and considerate shopper company, our experienced staff members associates are often available to discuss your demands and make certain full buyer pleasure for China EV Charger and EV Charging Station, Our items have been obtained more and more recognition from foreign clients, and established long term and cooperative relationship with them. We`ll supply the best service for every customer and sincerely welcome friends to work with us and establish the mutual benefit together.

    Suitable for a variety of industries

    We offer sustainable charging solutions that make perfect sense for every business and EV driver.

    Residential

    Working places

    Commercial Parking

    Fuel & Charging

    Retails & Hospitality

    Fleets

    RELIABLE PARTNER

    No after-sale concerns

    The best Business EV charger BeeY is made in our cutting-edge manufacturing facility. Thanks to fully automatic PCB SMT, all hardware boards are produced with sturdiness and dependability. The quality of incoming materials is strictly supervised, and redundant stocking systems are put in place to ensure the efficient distribution of goods. complete experiments, test tools, and output quality that is strictly controlled.

    ico IEC61851-1,IEC62196-1/-2,SAE J1772 certification and conformity

    ico IP55 ingress protection

    ico Over/Under Voltage Protection,Over Current Protection,Short Circuit Protection,Over/Under Temperature Protection,Lightning Protection,Ground Protection are all examples of electrical protection.

    ev charger business model BeeY
    ev charger business model BeeY-6

    APPLY FRIENDLY

    Easy to install and maintain

    BeeY’s modular design makes it simple to install and maintain an EV business charging network. It perfectly adapts to various locations and is easily installed by mounting one or two connectors on a wall or a pole—the choice is yours.

    ico Durable, weatherproof design

    ico  Indoor and outdoor installation

    ico Connecting mobile phones to APP

    Ev,Charging,Station,For,Electric,Car,With,Mobile,App,Display

    MAKE MONEY

    Smart Charging

    With our commercial software, you can manage users, impose pay-per-use charges, set up power management, easily collect payments, and much more. More of your EV charging revenue should be kept. Business, multi-family, and fleet environments can all benefit from the ACE EV charger business model BeeY.

    ico Easy Payment Processing

    ico Keep 100% of revenue generated

    ico Charging Report

    Use Cases for Different Scenarios

    ev charger amazon

    OEM for E-commerce/Small Business

    If you are interested in Business EV Chargers, no matter Level 1  or Level 2, we can help you to make your own chargers: Re-Branding Co-License, customizing covers/cable length/ packaging. Achieve your brand dreams. We can meet all your e-commerce (Shopify, Amazon) requirements.

    ev charger company type

    ODM for Medium to Large Business

    If you have an annual purchasing volume of more than $500,000 and need a wide range of products, we can offer Appearance Design, Moulding, and apply Certification for you, and customize all EV charger accessories, to grow your business.

    ev charger making money

    Product Development

    If you have an EV charger idea (kickstart, crowdfunding) and the money to produce it but don’t know where to start, we will guide you every step of the way, from the prototype to the final product.

    ev charger oem

    EV Charger whole produce process

    1123

    EV Charge Quality Control

    ev charger INSPECTION INSTRUMENT

    INCOMING INSPECTION

    Multifunctional AC charger tester

    PROCESS CONTROL

    ev charger SMT

    HARDWARE ASSURANCE

    patents

    HARDWARE ASSURANCE

    With continuous effort of the professional R&D and Sales & Service Team, Acecharger is already capable of manufacturing all kinds of EV charging stations and providing clients with a complete charging solution.

    read more

    Model

    PEVC2107E Series

    PEVC2107U Series

    For

    Europe

    North America

    Power Input

    lnput Type

    1-Phase

    3-Phase

    1-Phase

    lnput Wiring Scheme

    1P+N+PE

    3P+N+PE

    1P+N+PE

    Rated Voltage

    230VAC士10%

    40OVAC士10%

    L1:100VAC+10%/L2:230VAC士10%

    Rated Current

    16A or 32A

    Grid Frequency

    50Hz or60Hz

    Power Output

    output Voltage

    230VAC士10%

    40OVAC士10%

    L1:10OVAC士10%/L2:230VAC士10%

    Maximum Current

    16A or 32A

    Rated Power

    7kW

    11kW or 22kWw

    3.5KW/7kW

    User Interface

    Charge Connector

    Type 2 Plug

    Type 1 Plug

    Cable Length

    5m or Optional

    LED Indicator

    Green/Blue/Red

    LCD Display

    4.3 Inch Touch Color Screen(Optional)

    RFID Reader

    ISO/EC 14443 RFID Card Reader

    Start Mode

    Plug&Charge/RFID Card/APP

    Communication

    Backend

    Bluetooth / W-FiICellular(Optional) /Ethernet(Optional)

    Charging protocol

    OCPP-1.6J

    Safety and
    Certification

    Energy Metering

    Embedded Meter Circuit Component With 1% accuracy

    Residual Current Device

    DC6mA+TypeAAC30mA

    lngress Protection

    IP55

    lmpact Protection

    lK10

    Cooling method

    Natural Cooling

    Electrical Protection

    OveriUnder Voltage Protection,Over Current Protection,Short Circuit protectior
    OverUnder Temperature Protection.Lightning Protection,Ground Protection

    Certification

    cE

    Certification and Conformity

    IEC61851-1,IEC62196-11-2,SAEJ1772

    Environment

    Mounting

    Wall-mount/Pole-mount

    Storage Temperature

    -40℃-+85℃

    perating Temperature

    -3o℃- +50℃

    Max.Operating Humidity

    95%,Non-condensing

    Max.operating altitude

    2000m

    Mechanical

    Product Dimension

    270mm”135mm*365mm (WDH)

    Package Dimension

    325mm”260mm*500mm (wDH)

    Weight

    5kg(Net )/ 6kg(Gross)

    Accessory

    Cable Holder,Pedestal(Optional)

    Are ev chargers waterproof?

    Yes.  ACE EV Charger Business model BeeY is qualified with IP55

    IP55 means:

    • Dustproof level 5 : completely prevents the intrusion of foreign objects, although it cannot completely prevent the intrusion of dust, the amount of dust intrusion will not affect the normal operation of electrical appliances
    • Waterproof level 5 : proof against low-pressure water spray for at least 3 minutes

    Are ev chargers profitable

    Yes. A Business Model for EV Charging Stations Through OCPP 1.6J,. BeeY supports remote control via App. Since it is constantly connected, you can track and manage your charging stations, get remote firmware updates, and make money. Additionally, you can lower your infrastructure and energy costs by using load balancing.

    What certifications do ACEchargers have?

    Our products are based on 62 proprietary patents, which guarantee in-depth knowledge of the technology to offer a charging station of the highest quality and with guarantees.

    You will be able to consult all our certifications before placing your order, but we guarantee that with ACEchargers you will not have any difficulties in importing the product to your reference market. We are a solvent, professional and demanding company.

    Are your chargers suitable for home use?

    All ACEchargers is designed to reach the user who charges the vehicle at his home. We can adapt to other types of profiles, but our charging stations offer a simple and intuitive use, which makes them accessible to anyone.

    In addition, we have made sure to provide a careful and differentiated design. Because of this, they are not only suitable for home use chargers, but also the customer will love using them.

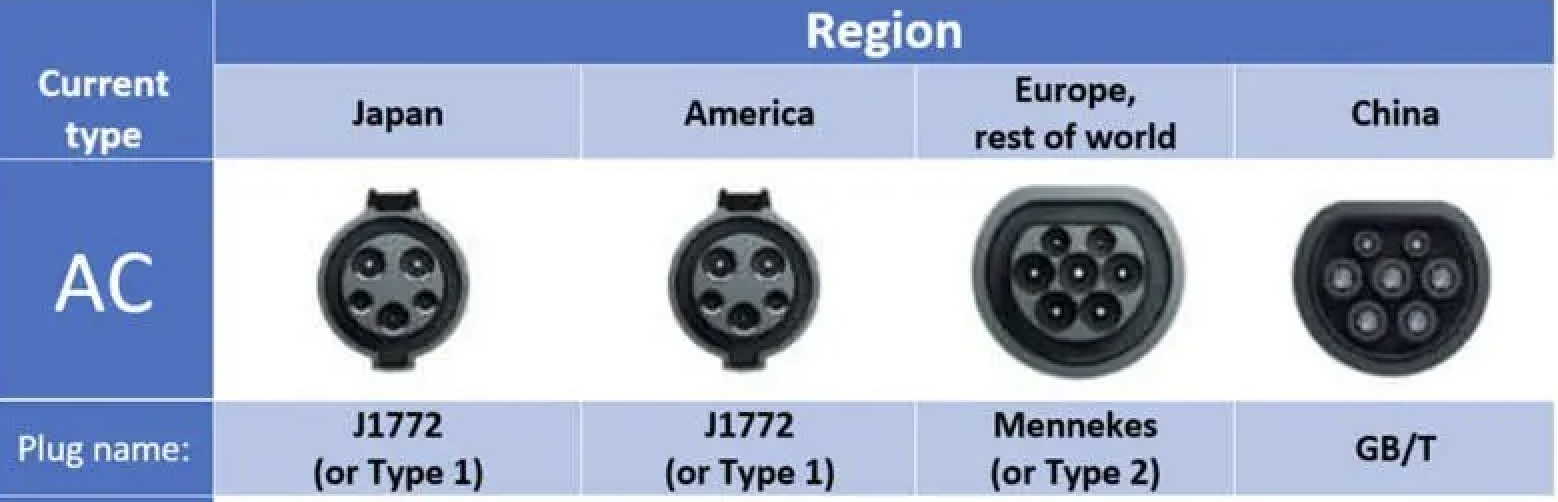

    What kind of plugs do you offer?

    Yes. All kinds of plugs are available for you to choose from:

    Our company is constantly developing, so we always offer innovative solutions to our customers. We have all kinds of charging stations, but also different wiring and other essential technology to charge vehicles.

    On the other hand, all our products allow a high degree of customization. Thanks to this, it is possible to design charging systems with your logo, specific packaging or the user manual according to your preferences.

    In case your company has a particular need, you can write us a message and we will study the possibility of offering you personalized solutions. At ACEchargers we have a team of award-winning engineers who can provide the right answer for each customer.

    Do you offer other charging solutions besides the ACEcharger?

    Charging stations can be made with plugs for both the US Standard and the EU Standard. In this way, it is a product configured to measure according to what you demand of us as a client.

    On many occasions, adapters or technologies are used that put the integrity of the system at risk. This is not the case with ACEchargers, where we carry out specific engineering work for each product, so that it adapts perfectly to its reference market.

    I want to hire your services, how can I contact you?

    We are always open to new collaborations and proposals. If you have any questions, want us to study your project as a client or talk to our team of experts, we encourage you to write us a message.

    Our team of specialized agents will give you an answer as quickly as possible. Write us without any commitment.

    Dedicated to strict excellent control and considerate shopper company, our experienced staff members associates are often available to discuss your demands and make certain full buyer pleasure for Excellent quality Green Science Home Level 2 EV Charging Station with NEMA 14-50 Plug 32A 40A 48A EV Charger, Welcoming interested companies to cooperate with us, we look forward to having the opportunity of working with companies around the world for joint growth and mutual success.
    Excellent quality China EV Charger and EV Charging Station, Our items have been obtained more and more recognition from foreign clients, and established long term and cooperative relationship with them. We`ll supply the best service for every customer and sincerely welcome friends to work with us and establish the mutual benefit together.
