China Supplier EV Charger AC Wallbox 7kw/22kw for Home/Public/Community with CE

Short Description:

Mini AC Charger Wall Box for EVs Wpearl is compatible with lEC Type 2 charging and has a 22kW maximum charging capability. Wpearl uses a TN-C power supply technology and is created for the UK and other locations. Wpear is secure and has numerous fault prevention. Wall mounting, simple installation.


  • Power: 3.5KW / 7KW
  • Output Current: 16A / 32A
  • Rated Voltage: 230V ±10%
  • Connector: IEC 62196-2 Type 2
  • Start Mode: Plug&charge/RFID Card/APP
  • Product Detail

    Generally customer-oriented, and it’s our ultimate goal for being not only the most trusted, trustable and honest provider, but also the partner for our customers for China Supplier EV Charger AC Wallbox 7kw/22kw for Home/Public/Community with CE, We believe that a passionate, revolutionary and well-trained team should be able to set up very good and mutually useful business relationships along with you soon. Remember to really feel no cost to get in touch with us for more facts.
    Generally customer-oriented, and it’s our ultimate goal for being not only the most trusted, trustable and honest provider, but also the partner for our customers for China EV Charging Station and EV Charger, The company attaches great importance to product quality and service quality, based on the business philosophy “good with people, genuine to whole world, your satisfaction is our pursuit”. we design merchandise, According to customer’s sample and requirements, to meet the needs of the market and provide different customers with individualized service. Our company warmly welcomes friends at home and abroad to visit, to discuss cooperation and seek common development!

    Good with all electric/hybrid plug-in vehicles

    WX20221106-125726@2x

    RELIABLE PARTNER

    No post-purchase issues

    Our sophisticated production facility creates EV Mini AC Charge Wall Box Wpearl. The fabrication of all hardware boards is robust and reliable thanks to fully automatic PCB SMT. To ensure the smooth distribution of products, strictly supervises the quality of incoming materials and implements redundant stocking systems. Complete experiments, test equipment, and highly regulated output quality.

    ico  LOGO/color / function etc. are customizable

    ico  OEM/ODM including size/shape / etc.are available

    ico  IS09001, ISO14001, ISO45001, CE, ROHS, REACH, FCC, UL, cULus, TUV Mark certificate



    EV Mini AC Charge Wall Box Wpearl production
    EV Mini AC Charge Wall Box Wpearl 1 (1)

    TRULY LASTING

    Adaptive Charging

    You can have the charging booking feature in the APP start at any moment you like. Saving cash equates to generating cash. We’ll compile and tabulate all of your charge history into a report. Wpearl can power current all-electric vehicles on the market, including Teslas, with the use of an adaptor that Tesla owners frequently use.

    ico Connecting mobile phones to an application

    ico Temperature range: -35°C to +50°C

    ico Plan your charging times when interest rates are lower





    WISE AND FRIENDLY

    Cost-effective

    Mini Wall Box Wpearl has a little pattern and is only half the size of A4 paper. Wpearl runs at -30  ° C to +50 ° C and up to 95% non-condensing humidity. It is designed to work with all EVs that have type 2 plug connectors. This model includes Type 1 as well. You may relax knowing that it is long-lasting.

    ico Applying for CE certification

    ico Automatic fault detection and simple maintenance

    ico For indoor or outdoor applications, IP65 &lK08 rated

    mini wallbox  Wpearl 1 (1)

    ev charger amazon

    OEM for E-commerce/Small Business

    If you are interested in making your own Home EV Chargers, whether Level 1 or Level 2, we can assist you: Co-License rebranding, customizing covers/cable length/packaging Realize your brand’s ambitions. We can fulfill all of your e-commerce (Shopify, Amazon) needs.

    ev charger company type

    ODM for Medium to Large Business

    If your annual purchasing volume exceeds $500,000 and you require a diverse range of products, we can provide Appearance Design, Moulding, and Certification, as well as customize all EV charger accessories, to help you grow your business.

    ev charger making money

    Product Development

    If you have an EV charger idea (kickstart, crowdfunding) and the funds to produce it but don’t know where to begin, we will walk you through the entire process, from prototype to final product.

    ev charger oem

    EV Charger Whole Produce Process

    1123

    EV Charge Quality Control

    ev charger INSPECTION INSTRUMENT

    INCOMING INSPECTION

    Multifunctional AC charger tester

    PROCESS CONTROL

    ev charger SMT

    HARDWARE ASSURANCE

    patents

    HARDWARE ASSURANCE

    With continuous effort of the professional R&D and Sales & Service Team, Acecharger is already capable of manufacturing all kinds of EV charging stations and providing clients with a complete charging solution.

    read more

    Model

    PEVC2107E Series

    PEVC2107U Series

    For

    Europe

    North America

    Power Input

    lnput Type

    1-Phase

    3-Phase

    1-Phase

    lnput Wiring Scheme

    1P+N+PE

    3P+N+PE

    1P+N+PE

    Rated Voltage

    230VAC士10%

    40OVAC士10%

    L1:100VAC+10%/L2:230VAC士10%

    Rated Current

    16A or 32A

    Grid Frequency

    50Hz or60Hz

    Power Output

    output Voltage

    230VAC士10%

    40OVAC士10%

    L1:10OVAC士10%/L2:230VAC士10%

    Maximum Current

    16A or 32A

    Rated Power

    7kW

    11kW or 22kWw

    3.5KW/7kW

    User Interface

    Charge Connector

    Type 2 Plug

    Type 1 Plug

    Cable Length

    5m or Optional

    LED Indicator

    Green/Blue/Red

    LCD Display

    4.3 Inch Touch Color Screen(Optional)

    RFID Reader

    ISO/EC 14443 RFID Card Reader

    Start Mode

    Plug&Charge/RFID Card/APP

    Communication

    Backend

    Bluetooth / W-FiICellular(Optional) /Ethernet(Optional)

    Charging protocol

    OCPP-1.6J

    Safety and
    Certification

    Energy Metering

    Embedded Meter Circuit Component With 1% accuracy

    Residual Current Device

    DC6mA+TypeAAC30mA

    lngress Protection

    IP55

    lmpact Protection

    lK10

    Cooling method

    Natural Cooling

    Electrical Protection

    OveriUnder Voltage Protection,Over Current Protection,Short Circuit protectior
    OverUnder Temperature Protection.Lightning Protection,Ground Protection

    Certification

    CE

    Certification and Conformity

    IEC61851-1,IEC62196-11-2,SAEJ1772

    Environment

    Mounting

    Wall-mount/Pole-mount

    Storage Temperature

    -40℃-+85℃

    perating Temperature

    -3o℃- +50℃

    Max.Operating Humidity

    95%,Non-condensing

    Max.operating altitude

    2000m

    Mechanical

    Product Dimension

    270mm”135mm*365mm (WDH)

    Package Dimension

    325mm”260mm*500mm (wDH)

    Weight

    5kg(Net )/ 6kg(Gross)

    Accessory

    Cable Holder,Pedestal(Optional)

    Can ev chargers get wet

    Yes.  ACE EV Charger Business model BeeY is qualified with IP55

    IP55 means:

    • Dustproof level 5 : completely prevents the intrusion of foreign objects, although it cannot completely prevent the intrusion of dust, the amount of dust intrusion will not affect the normal operation of electrical appliances
    • Waterproof level 5 : proof against low-pressure water spray for at least 3 minutes

    Can i install an ev charger at home
    All ACEchargers are designed to reach the user who charges the vehicle at his home. We can adapt to other types of profiles, but our charging stations offer a simple and intuitive use, which makes them accessible to anyone.

    In addition, we have made sure to provide a careful and differentiated design. Because of this, they are not only suitable for home use chargers, but also the customer will love using them.

    What certifications do ACEcharger have?

    Our products are based on 62 proprietary patents, which guarantee in-depth knowledge of the technology to offer a charging station of the highest quality and with guarantees.

    You will be able to consult all our certifications before placing your order, but we guarantee that with ACEchargers you will not have any difficulties in importing the product to your reference market. We are a solvent, professional and demanding company.

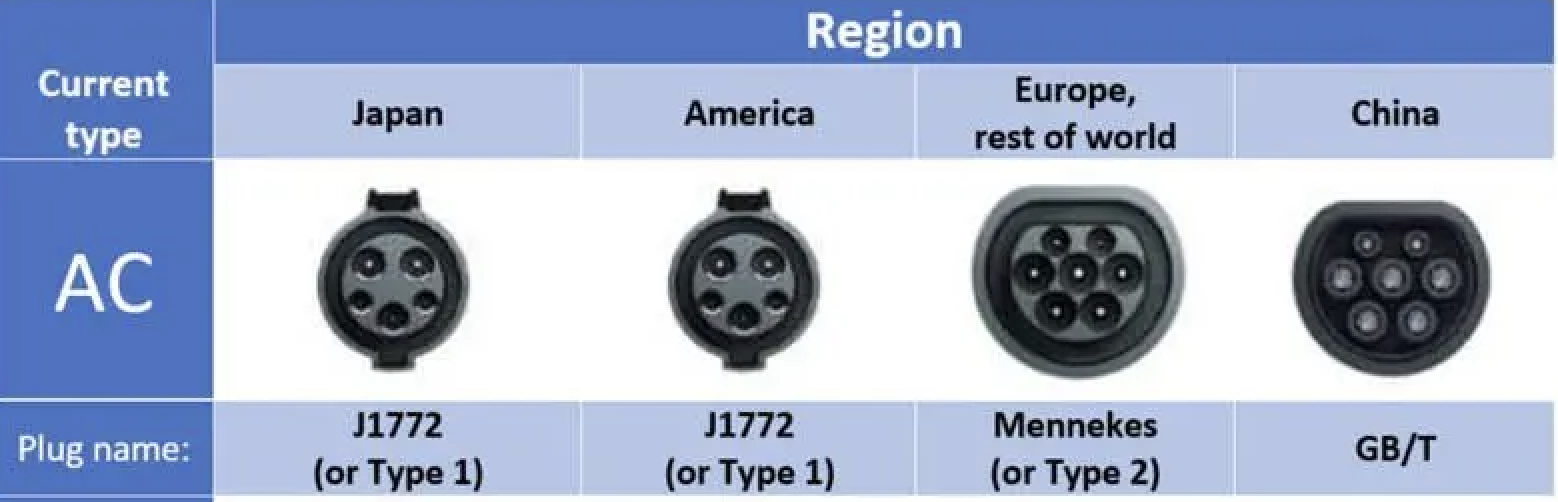

    What kind of plugs do you offer?
     All kinds of plugs are available for you to choose from:

    Our company is constantly developing, so we always offer innovative solutions to our customers. We have all kinds of charging stations, but also different wiring and other essential technology to charge vehicles.

    On the other hand, all our products allow a high degree of customization. Thanks to this, it is possible to design charging systems with your logo, specific packaging or the user manual according to your preferences.

    In case your company has a particular need, you can write us a message and we will study the possibility of offering you personalized solutions. At ACEchargers we have a team of award-winning engineers who can provide the right answer for each customer.

    Are your chargers suitable for home use?

    All ACEchargers is designed to reach the user who charges the vehicle at his home. We can adapt to other types of profiles, but our charging stations offer a simple and intuitive use, which makes them accessible to anyone.

    In addition, we have made sure to provide a careful and differentiated design. Because of this, they are not only suitable for home use chargers, but also the customer will love using them.

    Are your charging stations plug and play?

    Yes. At ACEchargers we aspire for anyone to be able to use our charging points. We designed them with the average user in mind, who is looking for a product that is easy to use and works great.

    This has led us to develop all of our products with the plug and play concept in mind. In fact, we take maximum care of the design, to create attractive lines that draw the customer’s attention. We also adapt to the power standard, plug type and voltage of the end customer’s market, to ensure that our charging station transmits confidence and security.

    I want to hire your services, how can I contact you?

    We are always open to new collaborations and proposals. If you have any questions, want us to study your project as a client or talk to our team of experts, we encourage you to write us a message.

    Our team of specialized agents will give you an answer as quickly as possible. Write us without any commitment.

    Generally customer-oriented, and it’s our ultimate goal for being not only the most trusted, trustable and honest provider, but also the partner for our customers for China Supplier EV Charger AC Wallbox 7kw/22kw for Home/Public/Community with CE, We believe that a passionate, revolutionary and well-trained team should be able to set up very good and mutually useful business relationships along with you soon. Remember to really feel no cost to get in touch with us for more facts.
    China Supplier China EV Charging Station and EV Charger, The company attaches great importance to product quality and service quality, based on the business philosophy “good with people, genuine to whole world, your satisfaction is our pursuit”. we design merchandise, According to customer’s sample and requirements, to meet the needs of the market and provide different customers with individualized service. Our company warmly welcomes friends at home and abroad to visit, to discuss cooperation and seek common development!
